Cable Stripper No. C 4 - 28
with hook blade and protective cap I working range 4 - 28 mm Ø I Classic Design
Product number:
10051159
|
EAN: 4024596034429
Description

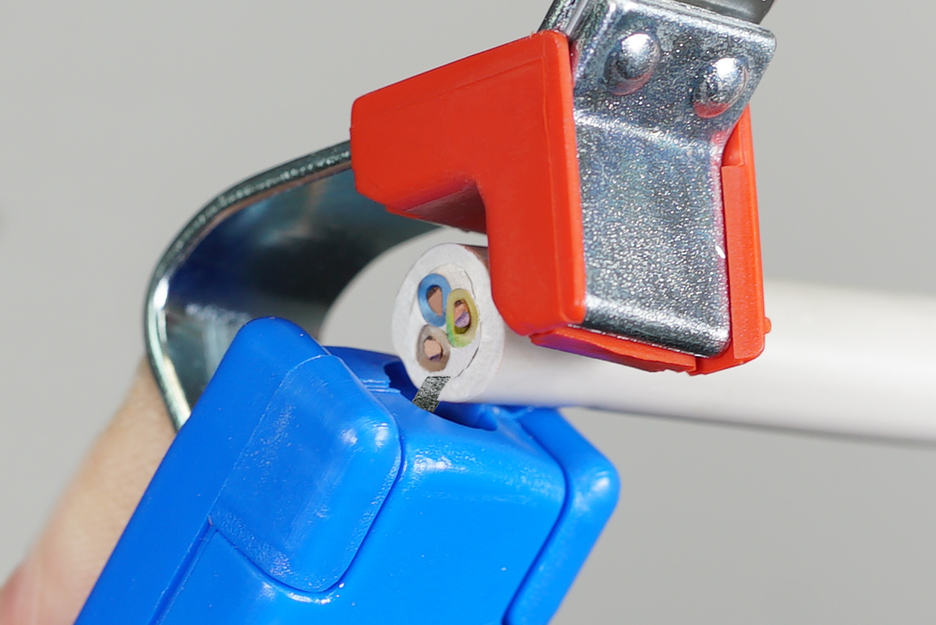

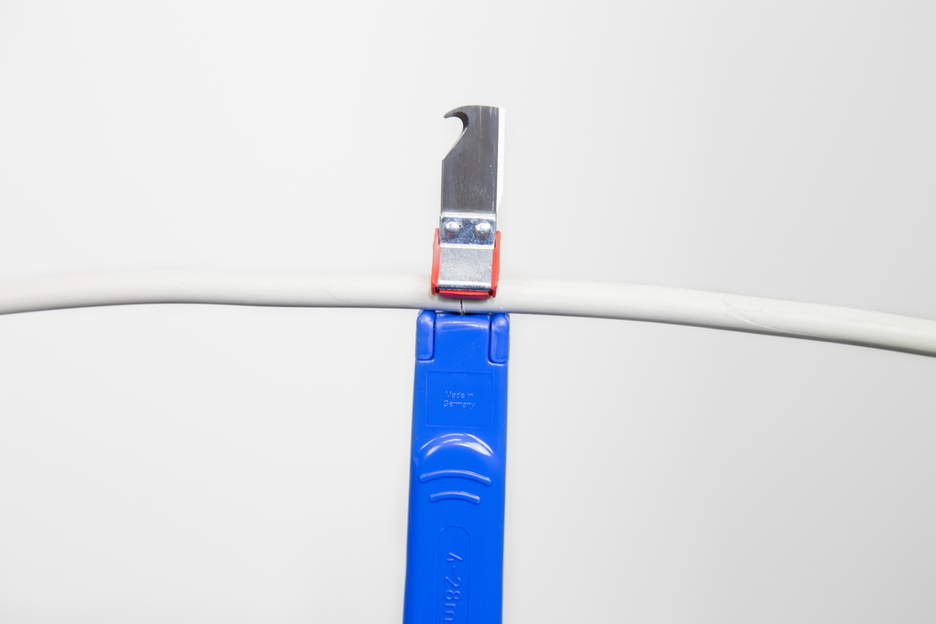

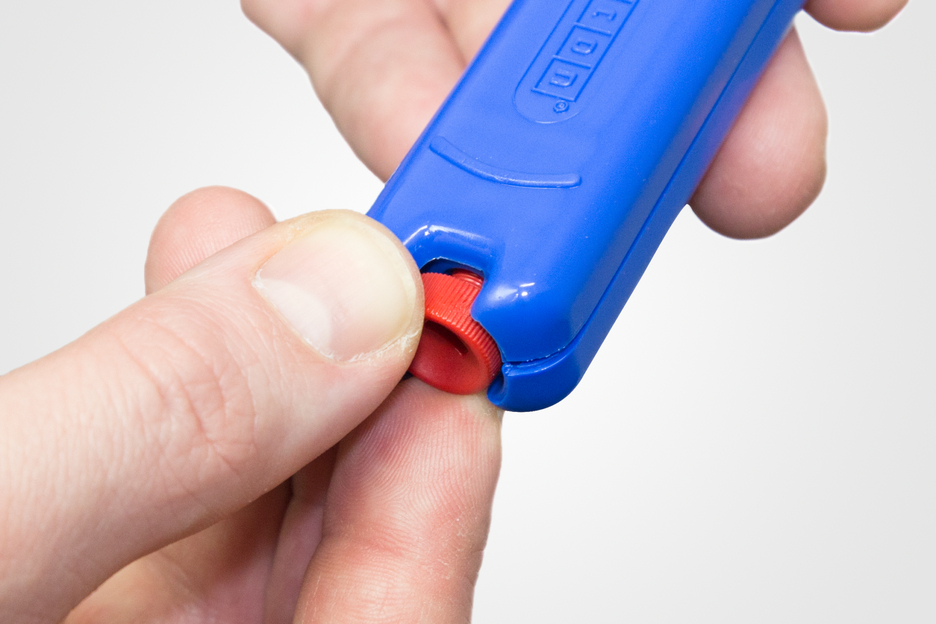

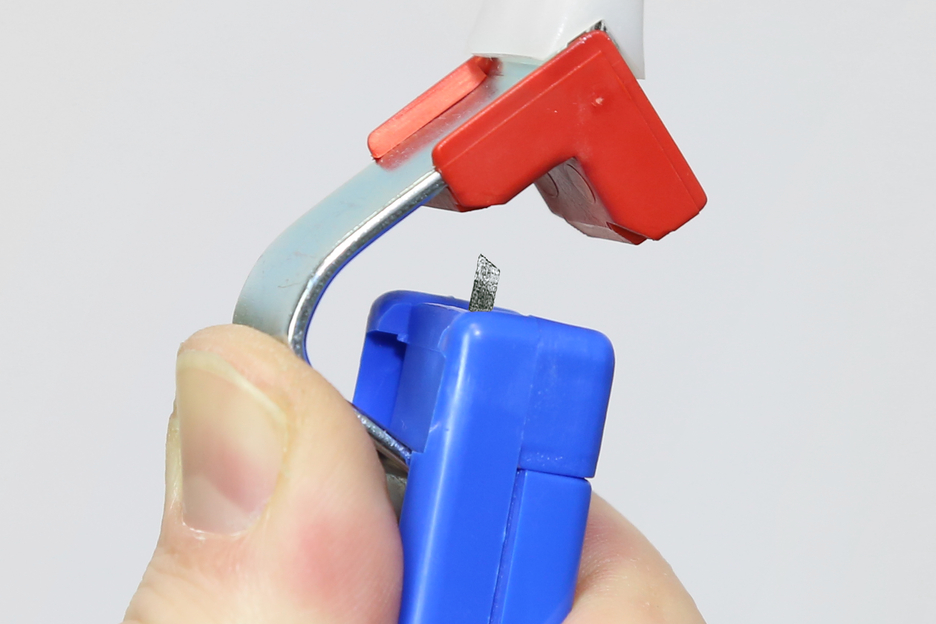

The Cable Stripper 4-28 H Classic enables precise, fast and safe stripping of all common round cables with a diameter between 4 and 28 millimetres. Thanks to the set screw on the back of the handle, the cutting depth can be adjusted with an infinitely variable range. This prevents damaging the inner conductor. The cutting blade is integrated in the housing and self-rotating, thus enabling the automatic adjustment from circular to longitudinal cutting. In addition, the 4-28 H has a hook blade, which can be covered with a safety cap. The cap locks the blade safely, which significantly reduces the risk of injury.
Downloads
Kabelmesser No. C 4-28 Technisches Datenblatt
(492,61 KB)
Zertifikat TÜV GS-Zeichen Kabelmesser
(545,20 KB)
Prüfzeichen TÜV NORD geprüfte Sicherheit
(23,32 KB)
Made In Germany
(37,10 KB)
(27,65 KB)
zert_messerstahl_de_pdf
(409,05 KB)
Programmübersicht 2024
(29,92 MB)
Neuheiten 2024
(6,15 MB)
Katalog 2024
(36,39 MB)
Katalog Abisolierwerkzeuge 2024
(28,10 MB)
Mindestlagerfähigkeit WEICON Produkte
(208,99 KB)
Kabelübersicht
(2,66 MB)
Information
- Tool
Login
Product safety
Attention:
Tool not to be used on live cables or conductors
